LPL3.5FM

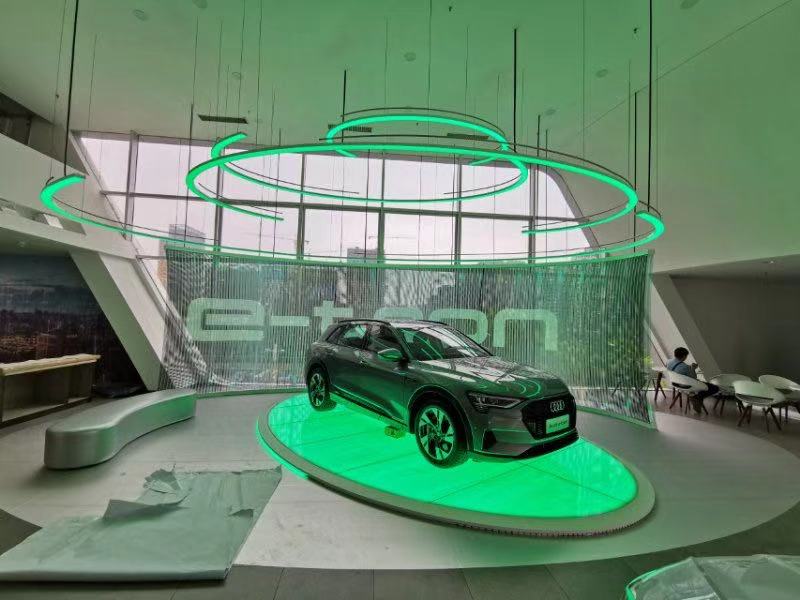

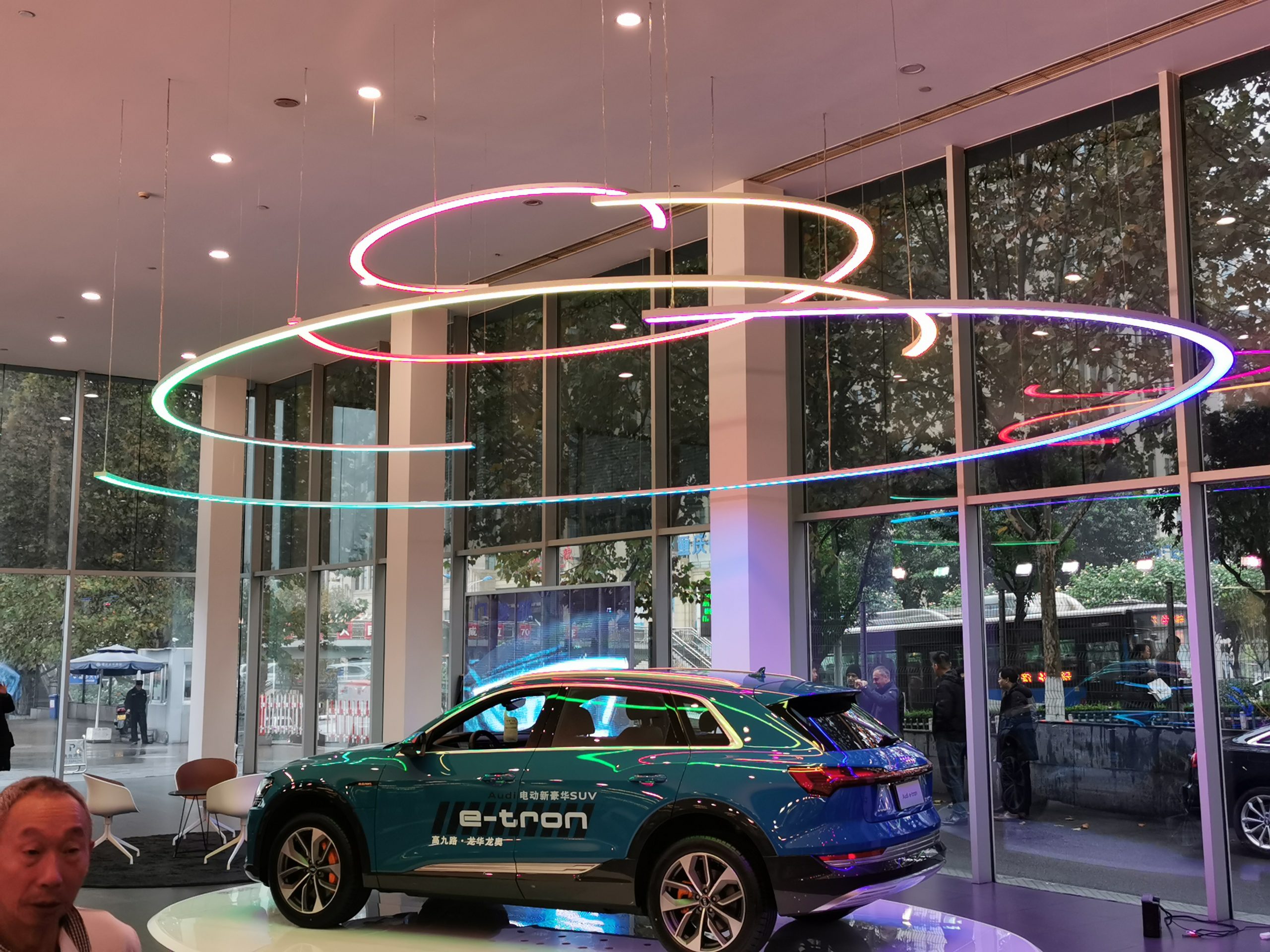

LPL3.5FM ( LPL3.5FM) collection of suspended rings is one of the most popular size from MoonRing family. 3.5 is the large-width member of the series.

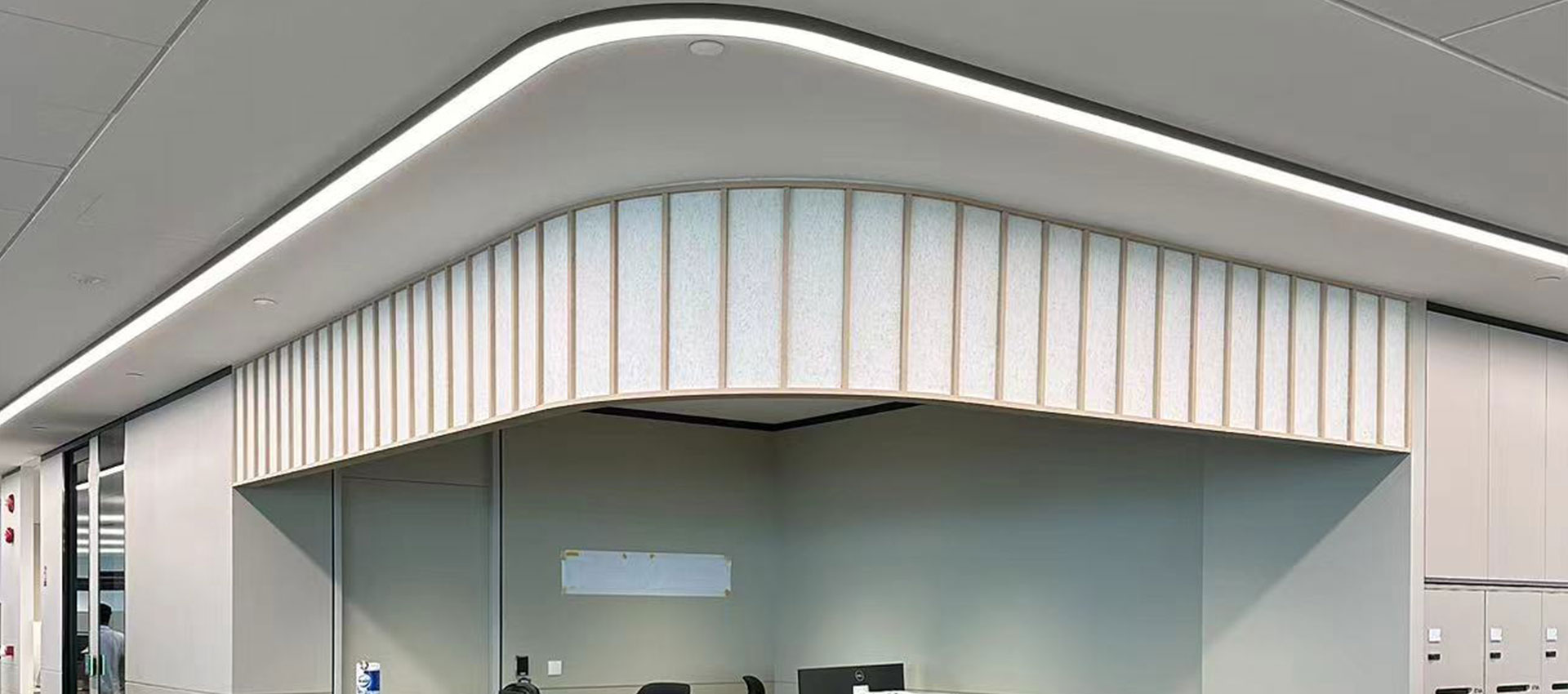

The fixture offers direct distribution with low UGR prismatic lens and ultra thin housing. Drivers are remoted, non-dim, DALI, 0-10V are optional. Width and curve size can be customized. Straight sections can be made to join with curved sections.

DOWNLOAD SPEC SHEET

LPL3.5FM
LPL3.5FM
LPL3.5FM
Imperial
Imperial Metric

Downloads

Tech Specs

SIZE

95x35mm

BODY

Aluminum

LENS

Arcylic, PC

FINISH

Black, White, Silver, RAL

LED

Standard CCT: 3000K, 3500K, 4000K, CRI90+ Other option: 2700K, 5000K, 5700K, 6500K, RGB, TUNE(2700K-6500K). Contact factory for details.

DRIVER

Remoted

DIMMING

1-10V / 0-10V dimming, dali dimming, traic dimming. Contact factory for other options.

OPTIONAL ADD-ONS

1.5 hour emergency kit, PIR sensor.

Approvals

  • ETL-cut
  • CB
  • CE
  • rohs
  • IP20
  • IK08

Optics & Features

Icon for 吊灯-只下照
Icon for 吸顶灯
